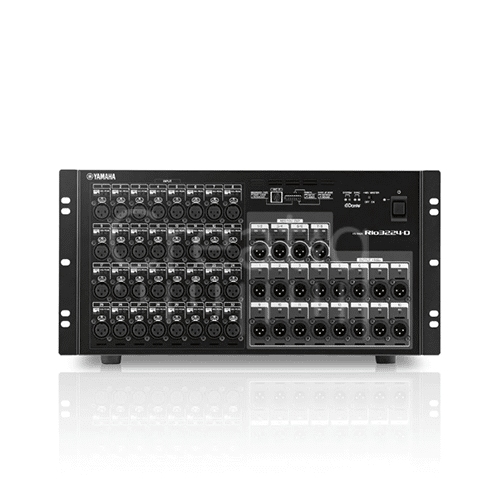

YAMAHA RIO 32-24

CARACTÉRISTIQUES TECHNIQUES :

• Sampling frequency rate external 44.1kHz
• Signal delay Less than 3ms INPUT to OUTPUT
• Total harmonic distorsion : Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω
• Frequency reponse : +0.5, -1.5dB 20Hz-20kHz
• Dynamic range : 108dB typ., INPUT to OUTPUT, Input Gain = Min
• Hum and noise level :
– -128dBu typ., Equivalent Input Noise, Input Gain=Max
– -88dBu Residual output noise, ST master off
• Crosstalk : -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
• Power requirement : US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
• Power consumpsion : 120W
• Dimension : 480 x 232 x 362mm (W x H x D)
• Net weight : 12.4kg
