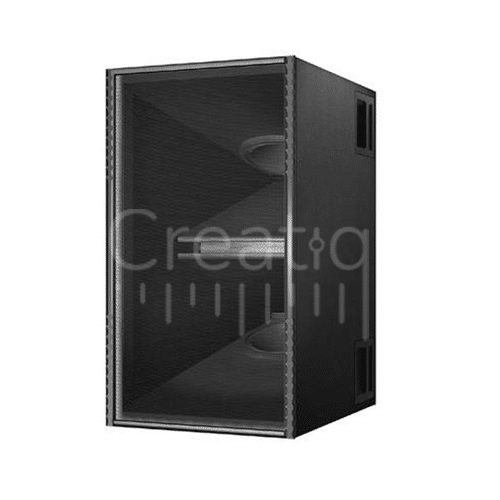

MEYER SOUND DS4

MEYER SOUND DS4 Renfort de basse

CARACTÉRISTIQUES TECHNIQUES :

Frequency response : ±4 dB from 70 Hz to 200 Hz
Phase response : ±70° from 70 Hz to 200 Hz
Maximum SPL : >142 dB SPL peak@1 meter
Dynamic range : >120 dB

(-6 dB points) : 120°H; 120°V

Low frequency : MS-12 12-inch cone drivers

Type : 10kΩ impedance, electronically balanced
Connector : XLR (A-3) male and female
Nominal input level : +4 dBu

Type : Complementary power MOSFET output stages (audio class AB/H)
Burst capability : 1240 watts (620 watts/channel)
THD, IM, TIM : <.02%

Dimensions : Height: 36″; Width: 21.25″; Depth: 30″
(914mm H x 540mm W x 762mm D)
Weight : 163 lbs (74 kg); shipping: 187 lbs (85 kg)
with carpet: 169 lbs (77 kg); shipping: 192 lbs (87 kg)
with L-Track 182 lbs (83 kg); shipping; 206 lbs (94 kg)
with carpet, L-Track: 188 lbs (86 kg); shipping: 211 lbs (96 kg)
Rigging : Six aircraft pan fittings (three on top and bottom). Working load for
each fitting is 600 lbs (273 kg) based on a 5:1 safety factor with a
straight tensile pull.
Optional L-Track rigging system: Working load at vertical pull using
any two points is 1500 lbs (682 kg) based on a 5:1 safety factor.
