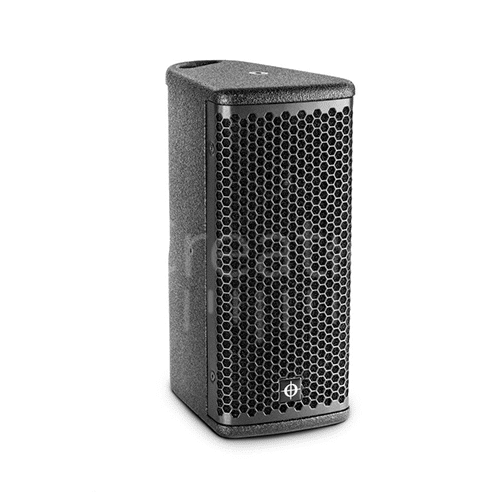

CODA – HOPS5

CODA – HOPS5 dual 5″ 300w/100°

CARACTÉRISTIQUES TECHNIQUES :

Type: Ultra compact 2-way high output point source system
Application: Superior quality point source for near-field applications
Frequency response: 80 Hz – 20 kHz (-6 dB)
Power handling AES: 300 W
Peak power: 1200 W
Sensitivity: 94 dB*
Max. SPL peak: 124 dB
Amplification, Cabinets per Amplifier
LINUS5-C Optimum / Maximum: 8/16
LINUS10-C Optimum / Maximum: 8/16
LINUS12C Optimum / Maximum: 8/16
LINUS14D Optimum / Maximum: 8/16
Dispersion: 100° conical
Components
Low frequency: 5″ woofer, 1.5″ (38 mm) VC, 150 W (AES)
Mid/High frequency: 5″/1,75″ neodymium coaxial driver
LF: 1.5″ (38 mm) VC, 150 W (AES)
HF: 1,75″ (44.4 mm) VC, 80 W (AES)
Crossover: 1.5 kHz passive
Nominal impedance: 8 Ω (1+/1-)
Input connectors: 2x Neutrik™ NL4MP
Enclosure material: Birch plywood
Finish: Polyurea black coating
IP rating (IEC 60529): IP54
Weather protection options: Standard IP55: IP55 (direct cable)
MG1 (Marine Grade 1): IP55
Suspension HOPS5: 2 x M6, 2x M8, 2x M10 fixing points:
Dimensions (WxHxD): 146 x 349 x 204 mm / 5.75 x 13.74 x 8.03″
Net weight: 6.4 kg / 14.11 lbs
